德国MR® 51手持式电动磁轭/磁粉探伤仪
产品简介:
德国MR® 51手持式电动磁轭/磁粉探伤仪MR51,MR56型用于检测表面及近表面裂缝和缺陷时进行磁粉探伤操作。方便的电源!安装调节杆,安装电缆连接,2个线圈,德国制造,原装进口。保修一年。质量可靠耐用。极间距离可调节:125-210mm,直杆间距:160mm。拉脱强度:>15Kg。磁场强度50A/cm(取决于两极的间距)。
产品详细信息:
德国MR® 51手持式电动磁轭/磁粉探伤仪MR51,MR56型适用于检测表面及近表面裂缝和缺陷时进行磁粉探伤操作。
方便的电源!
安装调节杆,安装电缆连接,2个线圈,德国制造
德国MR-CHEMIE化学有限公司生产的磁粉探伤仪及紫外线灯,为客户提供优质的技术服务。
原装进口德国MR-CHEMIE化学有限公司MR51,MR56型手持式电动磁轭/磁粉探伤仪的优点:
•自己生产–德国制造的
•结实的防冲击房
•质量很好,价格比
•无功率损耗的
优化的极点拟合
•极保护
试验介质渗透
•人机工程学的手柄
•强大
•低维护
极间距离可调节:125-210mm,直杆间距:160mm。拉脱强度:>15Kg。磁场强度50A/cm(取决于两极的间距)。
原装进口德国MR-CHEMIE化学有限公司MR51,MR56型手持式电动磁轭/磁粉探伤仪的技术参数:
Hand yoke:
|
MR® 56 (230V)
|
MR® 51 (230V)
|
MR® 51V42 (42V)
|
Art. no. Hand yoke:
|
56
|
51
|
51V42
|
Art. no.
Isolating transformer:
|
--
|
--
|
51V42-1
(please order separately)
|
Operating voltage /
Frequency:
|
230V AC /
50-60 Hz
|
230V AC /
50-60 Hz
|
42V AC /
50-60 Hz
|
Strength of current:
|
3.8 Ampere
|
2.8 Ampere
|
5.8 Ampere
|
Distance between poles
with adjustable poles:
with straight poles:
|
125-210 mm
160 mm
|
70-155 mm
110 mm
|
70-155 mm
110 mm
|
Pull-off-strength:
|
> 15 kg
|
app. 5,4 kg
|
ca. 5,4 kg
|
Magnetic field strength
with adjustable poles:
|
Pole distance 210 mm:
45 A/cm
Pole distance 160 mm:
50 A/cm
Pole distance 125 mm:
68 A/cm
|
Pole distance 150 mm:
33 A/cm
Pole distance 110 mm:
38 A/cm
Pole distance 70 mm:
60 A/cm
|
Pole distance 150 mm:
25 A/cm
Pole distance 110 mm:
30 A/cm
Pole distance 70 mm:
44 A/cm
|
Magnetic field strength
with straight poles:
|
Pole distance 160 mm:
60 A/cm
|
Pole distance 110 mm:
44 A/cm
|
Pole distance 110 mm:
33 A/cm
|
Magnetizing current:
|
AC
|
AC
|
AC
|
Dimensions:
|
L260 x D50 x H195 mm
|
L230 x D50 x H160 mm
|
L230 x D50 x H160 mm
|
Weight:
|
incl. adjust. Poles:
4,0 kg
incl. straight poles:
3,7 kg
|
incl. adjust. Poles:
2,9 kg
incl. straight poles:
2,7 kg
|
incl. adjust. Poles:
2,9 kg
incl. straight poles:
2,7 kg
|
Cable:
|
5 m safety cable
with safety plug
|
3 m safety cable
with safety plug
|
3 m safety cable
with safety plug
|
Delivery content:
|
MR® 56 Hand yoke
adjustable poles
User manual
lectr. protocol BGV A3
|
MR® 51 Hand yoke
straight +adjustable poles
User manual
lectr. protocol BGV A3
|
MR® 51V42 Hand yoke
traight +adjustable poles
User manual
Electr. protocol BGV A3
|

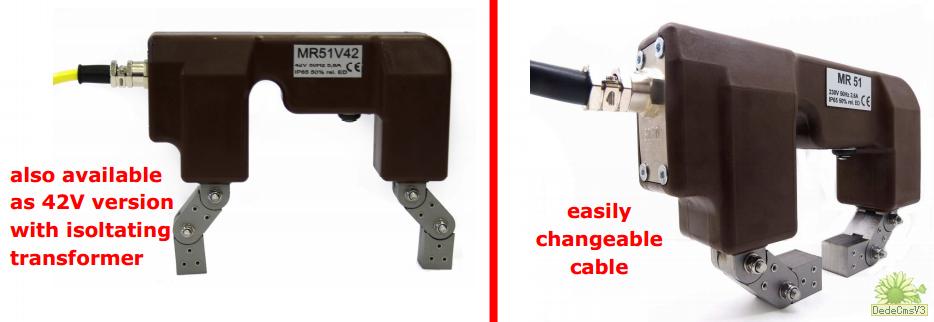

MR® Hand yokes (AC)
MR® 51 Handy Power 230V
MR® 51V42 Handy Power 42V
MR® 56 Strong Power 230V
(Art.-No. 51)
Handy Power!
with mounted adjustable poles, with mounted cable connection, 2 coils, made in Germany
Features:
• Own production – made in Germany
• Stout and impact proof housing
• Very good quality-price ratio
• No power loss because of the
optimized fitting of the poles

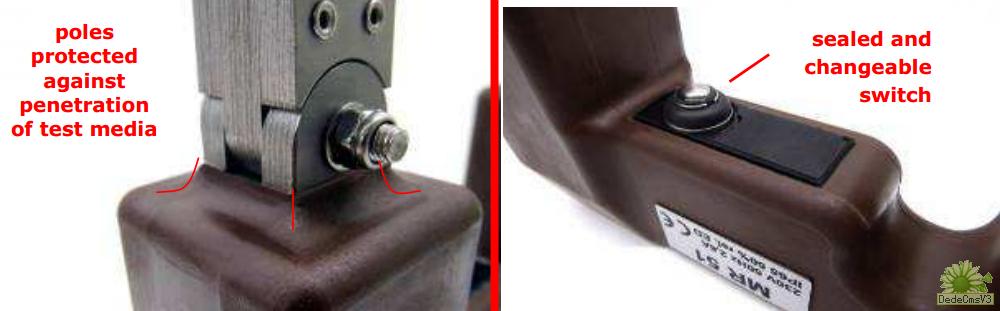

• Poles protected against
penetration of test media
• Ergonomical handle
• Powerful
• Low maintenance

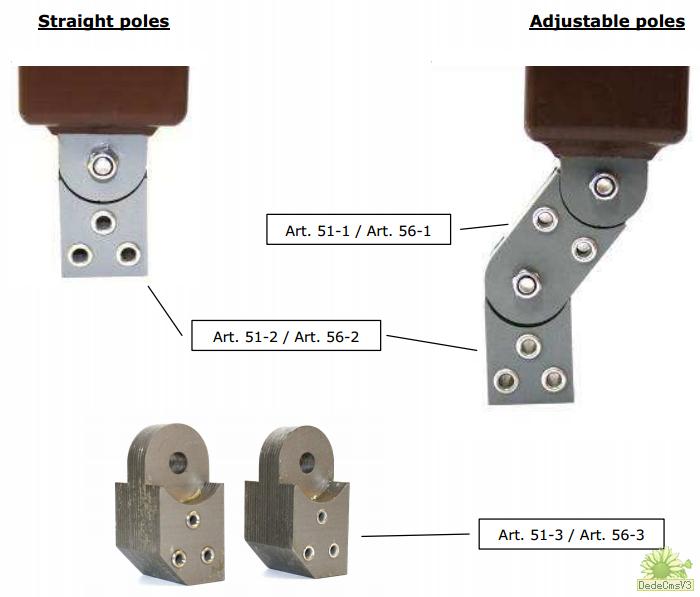

Poles:

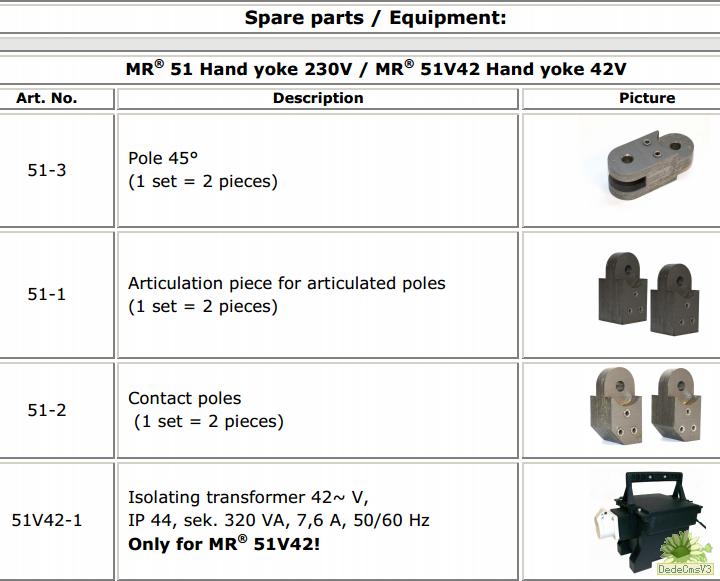

MR® 51 Hand yoke is delivered with adjustable poles. Inorder to work with straight
poles, the articulation piece (Art. 51-1) can be removed.

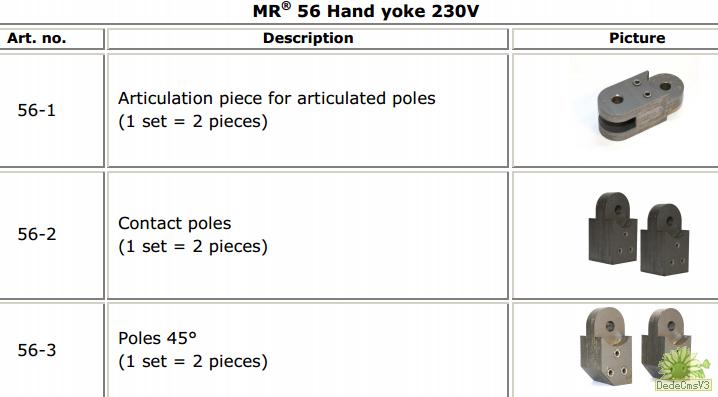

MR® 56 Hand yoke is delivered with straight poles. The articulation piece (Art. 56-1) (for
extension, to have articulation poles) can be purchased extra.
When testing special forms (e.g. tubes, fillet welds) poles 45° (Art. 51-3 / 56-3) can be
mounted either to the articulation piece (Art. 51-1/ 56-1) or directly to the hand yoke.
